Introduction

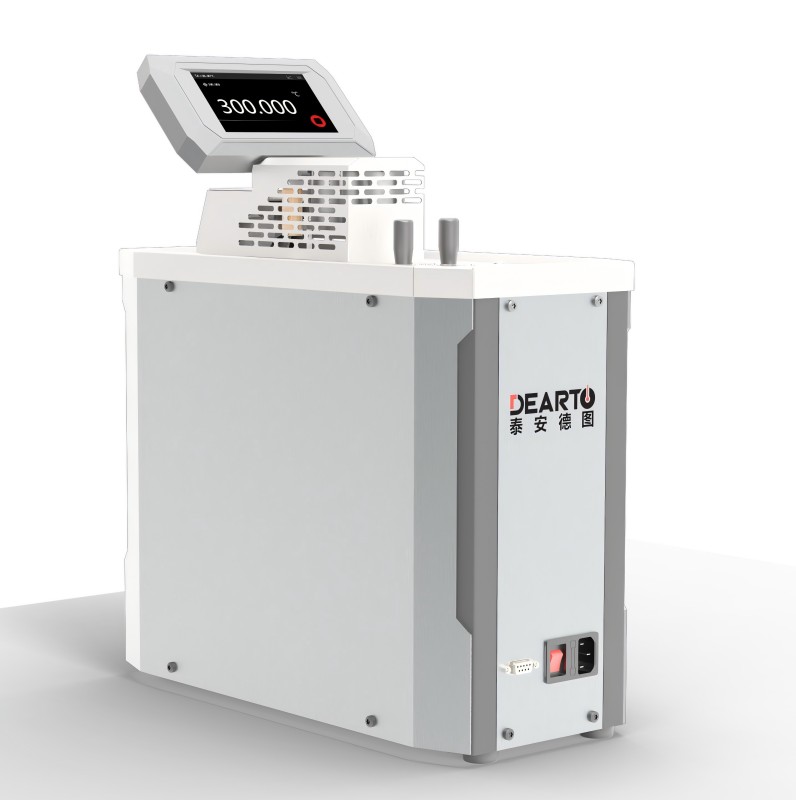

DTS-180BG/300BG-mt portable intelligent thermostatic oil micro calibration bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site validation / calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
Features
1.Small and portable, intelligent touch screen control, display temperature difference, fluctuation data;
2.Automatic segment temperature control, rapid temperature rise "zero" overshoot; micro-circulation technology, uniformity of temperature field.
3.Multi-point temperature calibration.
4.Temperature curve display, temperature data is automatically saved to U disk.
5.Equipped with overheating protection, safe and reliable temperature limiting function, and RS-232 communication interface can be connected to the host computer.
Interfaces

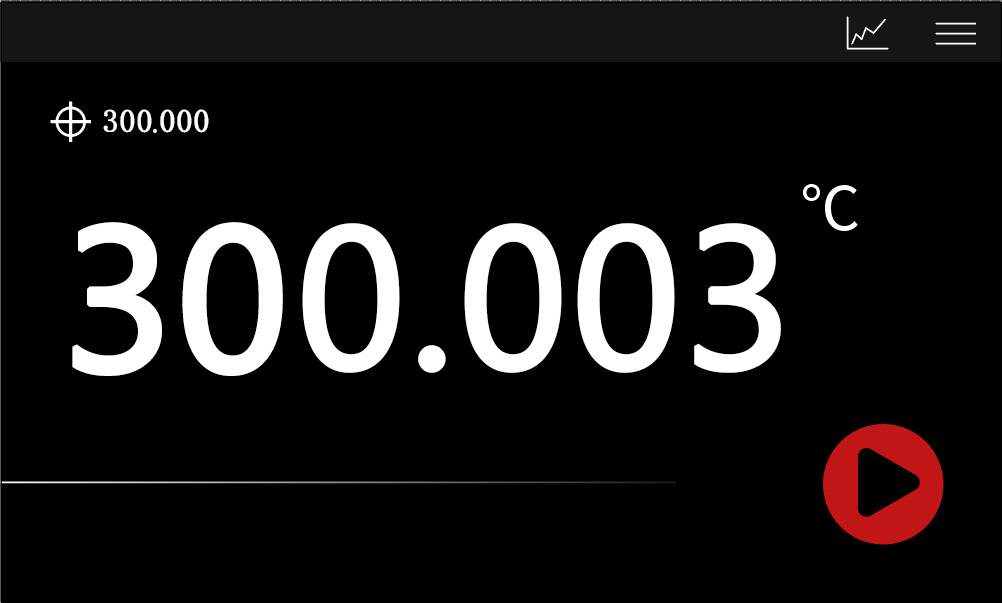

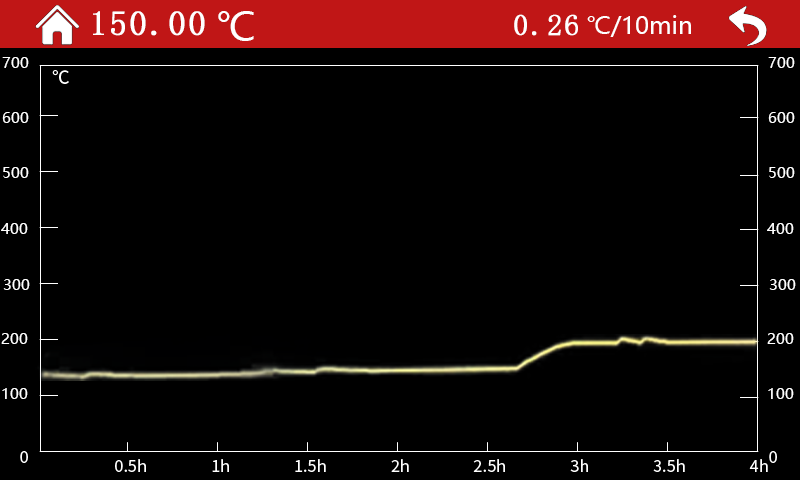

| Main interface | Settings interface | Curve interface |
 |  |  |

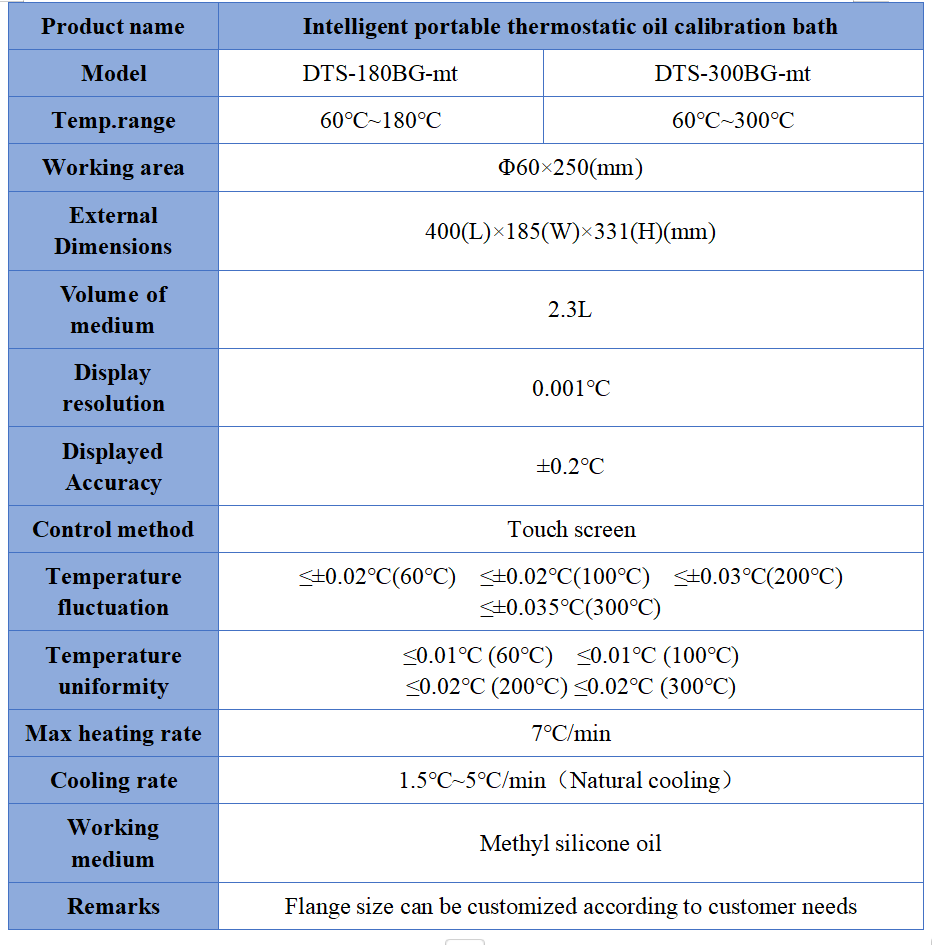

Technical Parameters
