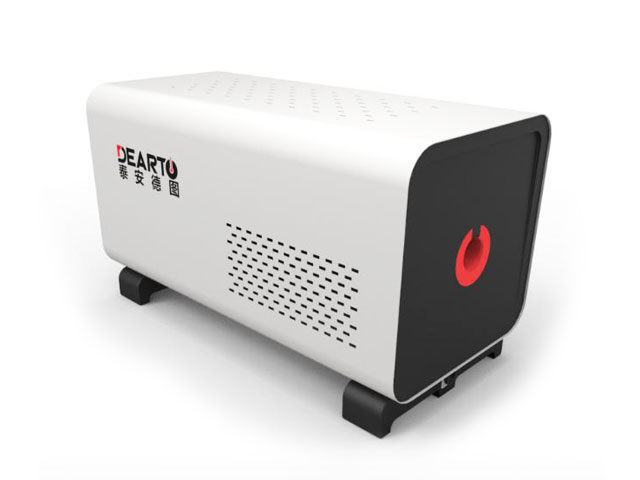

DTL-600G Low-Cost Metal Thermocouple Calibration Furnace

metal thermocouple calibration furnace

◇ Introduction ◇ Function◇ Parameter◇ Product order◇ Download◇ Related products

Introduction

DTL-600G Low-Cost Metal Thermocouple Calibration Furnace is a temperature field constant temperature equipment suitable for verification of various types of standard thermocouples, working precious metal thermocouples, and base metal thermocouples. This series of products has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national verification regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.

Technical Parameters

◇ Furnace size: 40mm×600mm

◇ Temperature range: 300 ℃ ~ 1200 ℃ (1300 ℃ can be customized)

◇ Temperature field distribution: Equipped with temperature equalization block, the effective working area is within 30mm in the axial direction, the temperature difference between any two points is not greater than 0.5 ℃, the radius is within 14mm, and the temperature difference between any two points on the same section is not greater than 0.25 ℃

◇ According to the rules and regulations: "JJF1184-2007 Thermocouple Calibration Furnace Temperature Field Test Technical Specifications" "JJF1637-2017 Low-cost Metal Thermocouple Calibration Specifications" "JJF1262-2010 Armored Thermocouple Calibration Specifications"

◇ Scope of application: verification / calibration of S, R standard thermocouples, working S, R precious metal thermocouples, and inexpensive metal thermocouples

Remarks: The furnace size and temperature range of DTL-600G low-cost metal thermocouple calibration furnace can be customized.

Note: furnace inner size, temperature range can be customized non-standard

thermocouple calibration furnace patent

DTL-600G Low-Cost Metal Thermocouple Calibration Furnace
