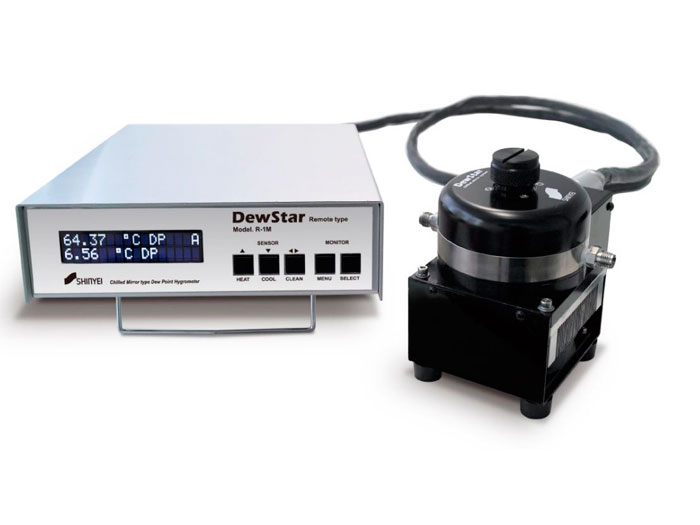

Japan SHINYEI Precision Mirror-Cooled Dew Point Meter technical Parameters
| Use environment range below 95% rh (no condensation) | -10 ~ 60 ℃ (sensor part), 0 ~ 35 ℃ (host part) | |
| Dew point measurement range | -40℃~60℃DP | |
| Sampling method | Pumping | |
| Measurement items | Dew point. Frost point (C), dry bulb temperature (℃), absolute pressure (kPa), relative humidity (%), moisture content (PPMv, PPMw) | |
| Temperature accuracy | ±0.1℃ | |
| Dew point accuracy | ±0.15℃ | |
| Reproducibility | ±0.05℃ | |
| Gas flow | 0.5~2.5L/min | |
| Reaction speed | 1.5℃/sec | |
| Temperature (optional) | Pt100Ω 4-wire type | |
| Pressure (optional) | 4-20mA connected 2-wire pressure sensor | |
| Output | Analog output | 2 channels DC 0 ~ 5V, 4 ~ 20mA (can be used at the same time), two items can be selected, contact output 100mA AC / DC |
| RS232C output | ||
| Alarm Output | ||
| Operating temperature range | 0℃~60℃ | |
| Working pressure range | 0~0.5MPa | |
| Measured gas IN-OUT | 1/4 inch compression fitting | |
| Supply voltage | AC90~240V，50/60Hz | |
| Power consumption | 50W | |
| Weight | Sensing Department | 2.0kg |
| Body part | 3.2kg | |
